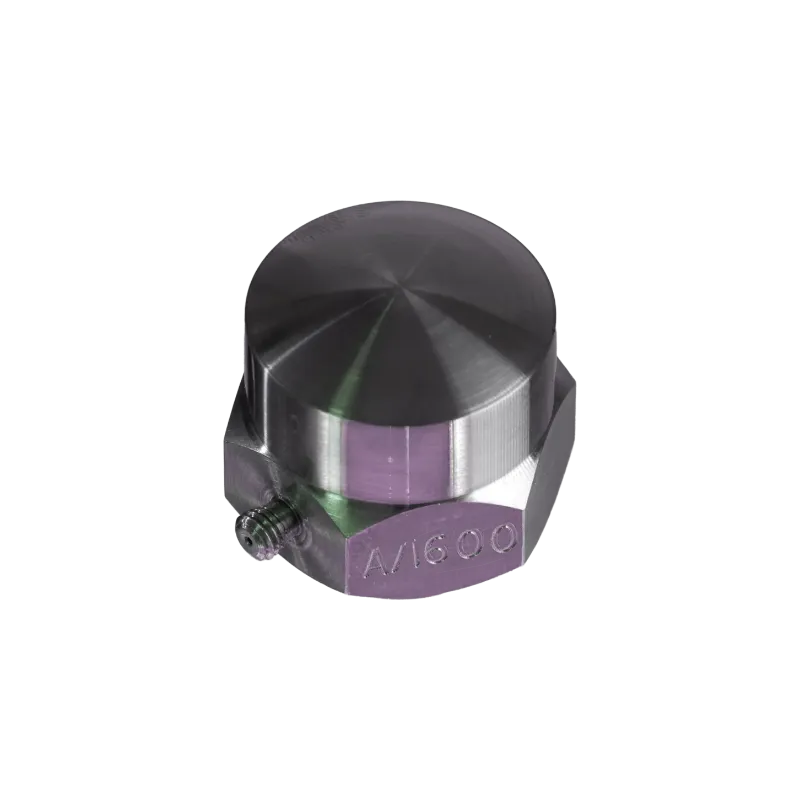

Model - A/1600/V

The A/1600 range of single axis IEPE seismic micro g accelerometers are ultra high output, multiple shear plate voltage accelerometers. They are available with an acceleration range of 1-5g. The use of shear plate construction provides near total isolation from mechanical inputs other than acceleration. This provides a safe guard in the measurement integrity in applications where vibration is accompanied by high dynamic strain levels. All IEPE accelerometers require a constant current supply in the range of 2 to 20mA, which  can be provided by many commercially available measurement systems.

NOTE: Voltage sensitivities shown are standard. We offer a wide range of sensor sensitivities on request. We recommend that applications are evaluated to determine the appropriate sensitivities.

View this product directly on DJB Instrument’s website: DJB Model A/1600

Check out the Charge type version of this accelerometer: Model A/600
