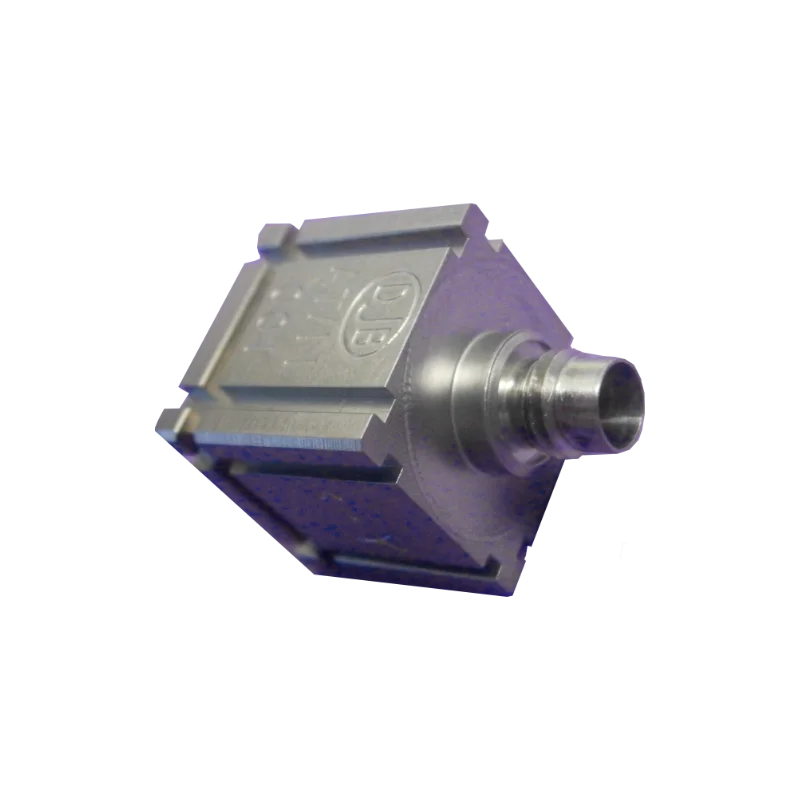

Model - AT/11

The AT/11 triaxial IEPE accelerometer is designed for modal testing and structural applications in the Automotive and Aerospace markets. It directly replaces the B&K 4506 accelerometer and fits the same clip mounting. Slotted sides and a slotted base allow mounting on five faces by sliding into the accompanying clip. Users can mount the clips with standard glue methods and easily slide accelerometers in and out as needed. This ensures perfect test repeatability without leaving the accelerometer in place permanently. For large channel count testing, all accelerometers mount in the same orientation, simplifying software setup. Made from titanium for low mass and durability, the AT/11 features three internally mounted Konic Shear® sensing elements. These elements provide excellent performance in all three orthogonal axes with minimal cross-axis effects.

With a 50 to 5000g range, the AT/11 delivers reliable measurements for demanding modal testing and structural applications.

View this product directly on DJB Instrument’s website: DJB Model AT/11
