Accelerometer, Triaxial, IEPE, 25-5000g, High Sensitivity
MODEL:
main features
- 25 to 5,000g
- 1, 10, 100, 200mV/g (±10%)
- frequency: 0.7 to 5,000Hz
- temp: -50°C to 125°C
- weight: 24.9gm
Options
Description

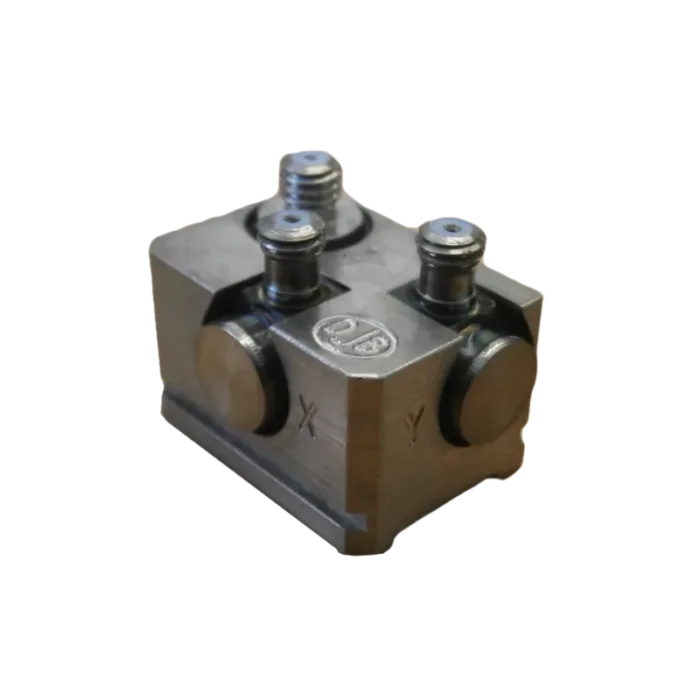

Model A/136/V is an ccelerometer triaxial IEPE 25-5000g high s ensitivity delivering high sensitivity with three independent Konic Shear® IEPE Piezo-Tronic sensors, and orthogonally mounted in a titanium block. It handles ranges from 25 to 5000g. Each sensor features a fully welded construction with individual axis calibration and complete block calibration.
Microdot connectors exit in one direction for easy installation. Each insert remains electrically insulated from the housing, eliminating ground loop interference.
This multi-sensor accelerometer allows easy repairs by replacing damaged inserts, reducing overall replacement costs.
The A/136 supports adhesive and clip mounting for flexible installation. The A/36-1 features M3 through-holes for secure and simple mounting.
View this product directly on DJB Instrument’s website: DJB Model A/136
Check out the Charge version of this accelerometer: Model A/36
