Model - A/34

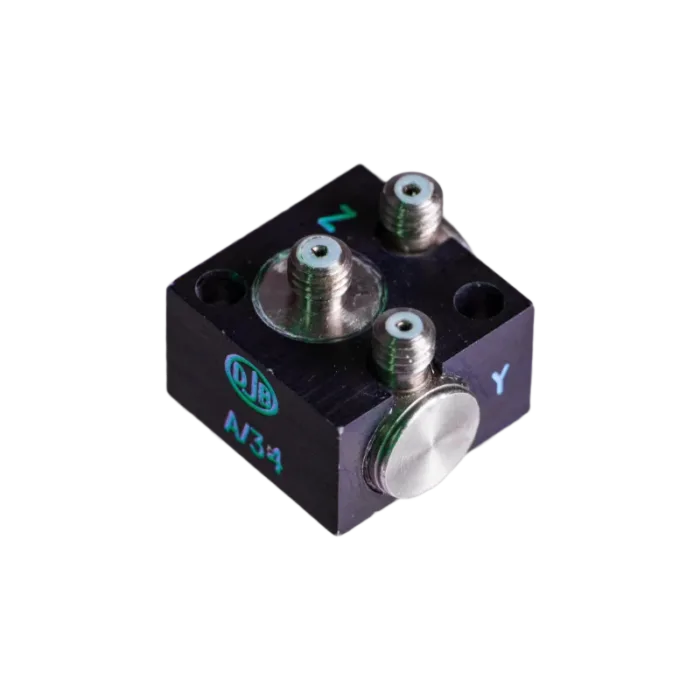

The A/34 lightweight triaxial vibration accelerometer uses three Konic Shear® fully welded sensing inserts, bonded orthogonally inside a hard-anodized aluminum housing. This multi-sensor delivers 7pC/g sensitivity and operates within a 5000Hz frequency range, ensuring high-precision vibration measurement. All three 10/32 Microdot connectors exit in the same direction, simplifying integration. Each insert remains electrically insulated, both individually and from the housing, preventing ground loop interference. Its construction enhances mechanical isolation, significantly reducing strain-induced errors for accurate vibration measurements.

Mount the A/34 using two through-holes (3.57mm diameter) in the aluminum block. The A/34-2 allows mounting via a single M4 clearance hole at the center or three 10/32UNF tapped holes for X, Y, or Z-axis installation.

The Konic Shear® design suppresses D33 components, reducing cross-axis errors and ensuring reliable three-axis measurements.

Replace damaged inserts easily, lowering long-term ownership costs and minimizing future replacement expenses.

————————————–
