Accelerometer, Triaxial, Charge, 5pC/g, General Purpose
MODEL:
main features
- Charge type
- 5pC/g
- frequency: 0.7 to 7,000Hz
- temp: -50°C to 250°C
- weight: 13 to 16.6gm
Options
Description

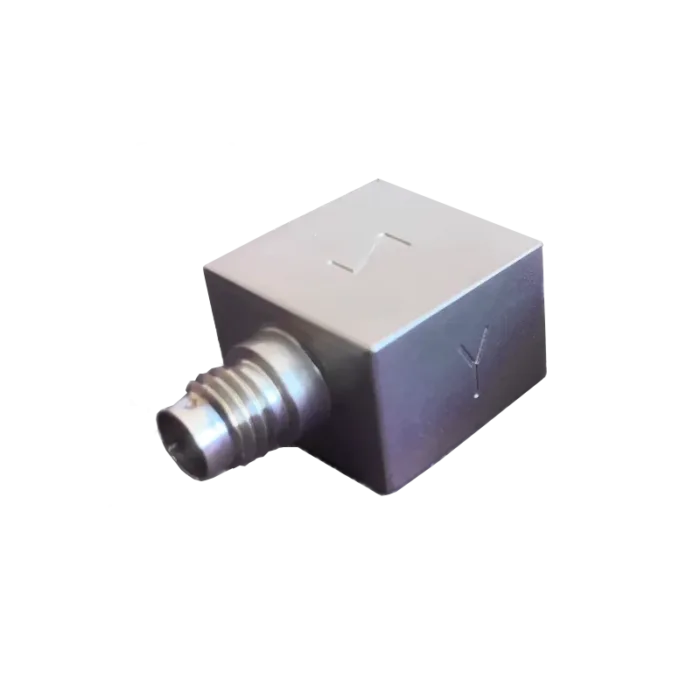

The AT/04 is a lightweight, general-purpose triaxial vibration transducer that delivers high-precision measurements with 5pC/g charge output sensitivity. Its three orthogonally mounted Konic Shear® piezoelectric sensing elements ensure accurate data collection. The fully welded titanium construction enhances durability and reliability.
DJB Instruments manufactures the AT/04, one of only three PE charge output single-connector accelerometers worldwide. Its low-noise four-core cable reduces triboelectric interference, ensuring a cleaner signal.The AT/04 features a 4-pin ¼-28UNF industry-standard connector and supports standard or ruggedized cables with three BNC-labeled breakout leads. It performs well in automotive and aerospace applications. An integrated ceramic isolating base provides complete ground isolation, improving measurement accuracy.
Choose the AT/04 general-purpose charge output accelerometer for reliable, precise, and low-noise vibration analysis in demanding environments.
View this product directly on DJB Instrument’s website: DJB Model AT/04
Check out the IEPE version of this accelerometer: Model AT/14
