Accelerometer, Single Axis, IEPE, 500-5000g, Miniature
MODEL:
main features
- 500 to 5000g
- 1mV/g up to 10mV/g (±10%)
- frequency: 0.7 to 14,000Hz
- temp: -50°C to 200°C max
- weight: 0.19gm
Options
Description

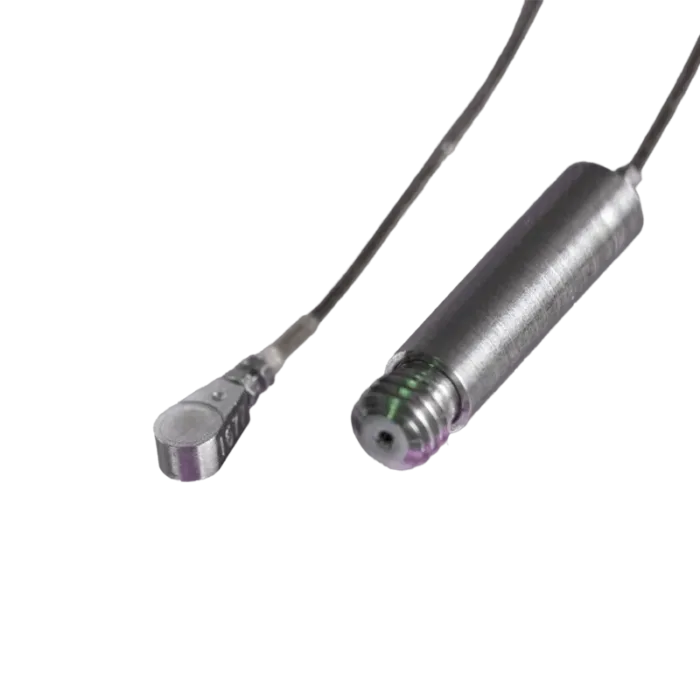

Miniature accelerometer, single axis with IEPE, 500-5000g range, in-line voltage output, all welded, piezo-ceramic shear plate sensing element. The low mass of the A/128/V renders it transparent in the vast majority of light weight structure vibration measurement applications. The model A/128/V is mounted with an adhesive. Signal outlet is via a 10-32 UNF microdot socket on the QF/28, in-line on the cable assembly.
NOTE: Voltage sensitivities shown are standard. We offer a wide range of sensor sensitivities on request, and recommend that applications are evaluated to determine the appropriate sensitivities.
View this product directly on DJB Instrument’s website: DJB Model A/128/V
Check out the Charge type version of this accelerometer: Model A/28
