Accelerometer, Single Axis, IEPE, 20-5000g, General use
MODEL:
main features
- 20 to 5000g
- 1mV/g up to 250mV/g (±10%)
- frequency: 0.7 to 11,000Hz
- temp: -55°C to 125°C
- weight: 3.4gm
Options
Description

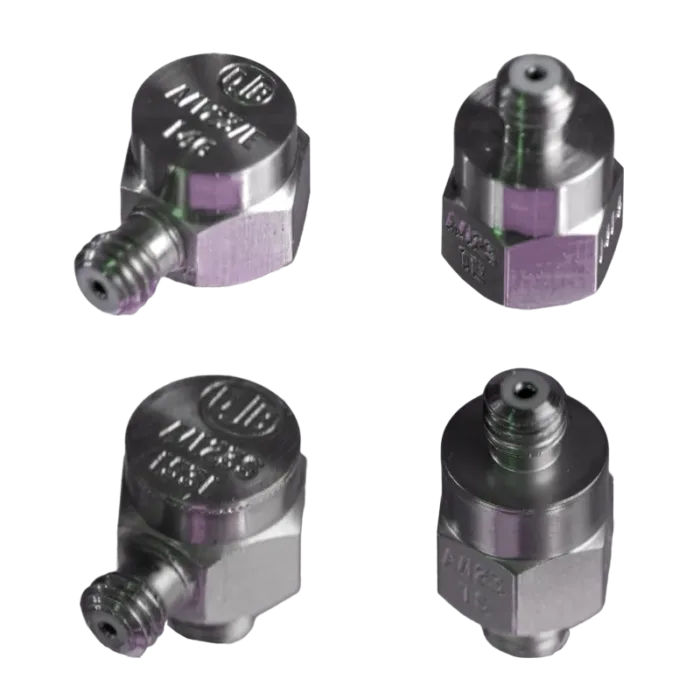

The A/123/E range of single-axis IEPE accelerometers features the Konic Shear® design sensor element. It offers side or top entry connectors for flexible installation. Users can choose from flat, tapped, or isolated base mounting options. The A/123/E is a durable uniaxial constant current accelerometer. It’s ideal for modal testing, vibration testing, NVH, package testing, and shock testing.
NOTE: Voltage sensitivities shown are standard. We offer a wide range of sensor sensitivities on request. We recommend that applications are evaluated to determine the appropriate sensitivities.
View this product directly on DJB Instrument’s website: DJB Model A/123/E
Check out the Charge type version of this accelerometer: Model A/23
