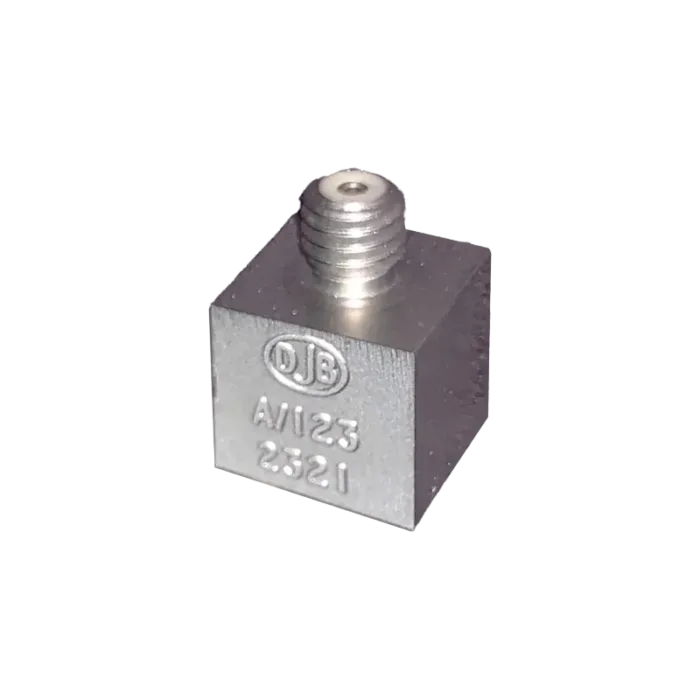

Accelerometer, Single Axis, IEPE, 20-5000g, Cube, Top
MODEL:
main features
- 20 to 5000g
- 1mV/g up to 250mV/g (±10%)
- frequency: 0.7 to 10,000Hz
- temp: -55°C to 125°C
- weight: 4.8gm
Options
Description
The A/123/BT cube top entry monoaxial IEPE accelerometer delivers high performance in the DJB Piezo-tronic range with Konic Shear® design sensing. Its top-entry connector and adhesive mounting on five of six faces ensure flexible installation. This compact, low-mass accelerometer minimizes mass loading effects while providing a wide frequency range and linear response. Designed for durability, it performs reliably in modal testing, vibration testing, NVH, package testing, and shock testing. It also supports 20-5000g measurement ranges for versatile applications.
NOTE: Standard voltage sensitivities are shown. We offer various sensitivities on request and recommend evaluating applications to determine the best option.
View this product directly on DJB Instrument’s website: DJB Model A/123/BT
Check out the Charge version of this accelerometer: Model A/23
