Modal Vibration Shakers
Shaker Systems from DynaLabs

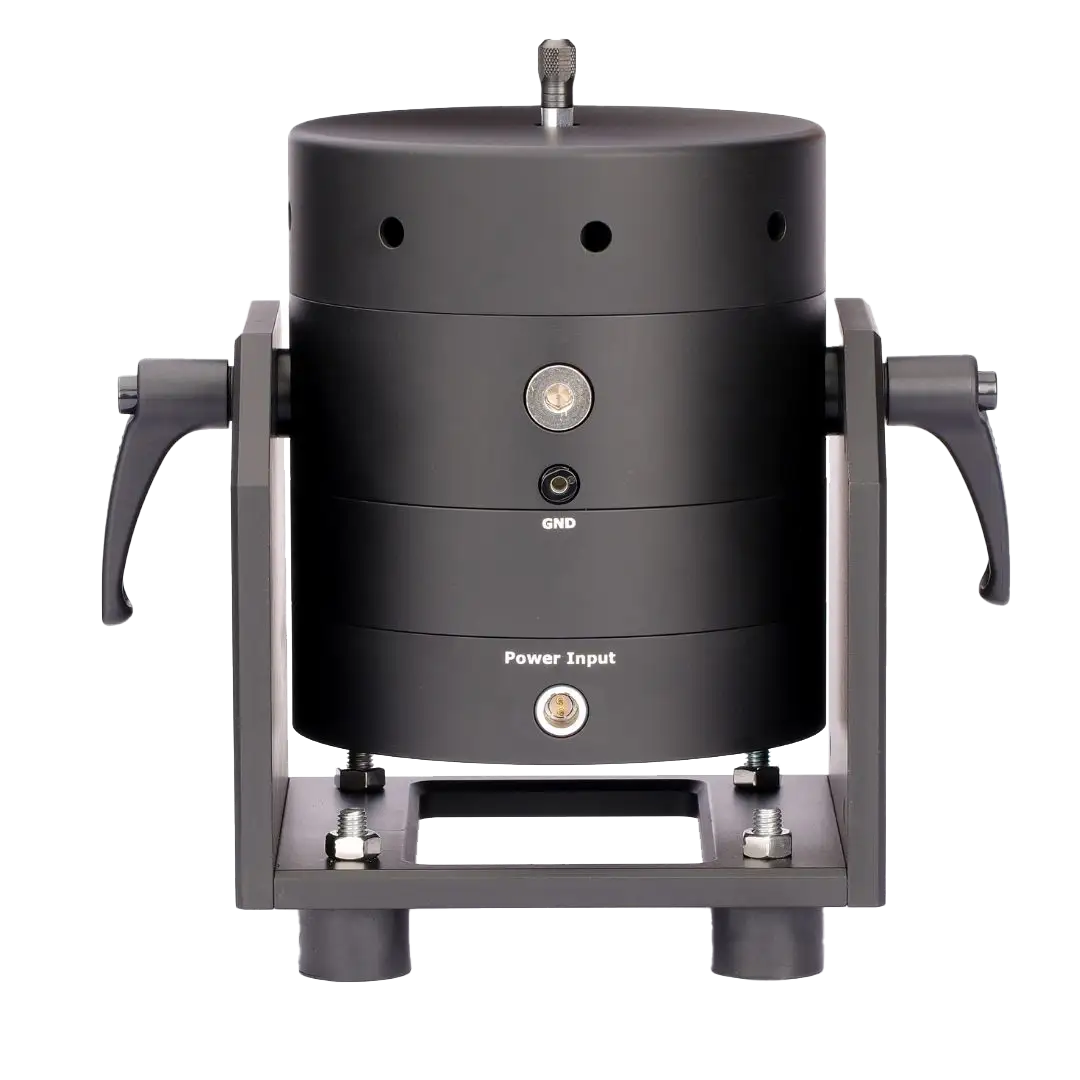

A modal vibration shaker is a specialized type of vibration testing equipment designed for conducting modal analysis on mechanical structures and components. The mechanics of operation are similar to a permanent magnet shaker.
Modal vibration shakers (MS) excite the structure under test by a stinger. Force is transferred from the shaker to the structure via this stinger. Modal vibration shakers are used for larger structures.
Modal analysis is a technique used to study the dynamic behavior of structures, such as buildings, bridges, aerospace components, and mechanical systems, by identifying their natural frequencies, mode shapes, and damping characteristics.
Models
Main Features

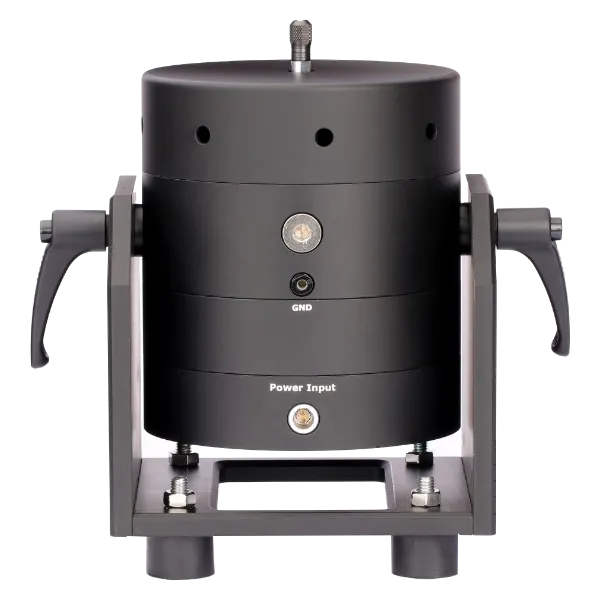

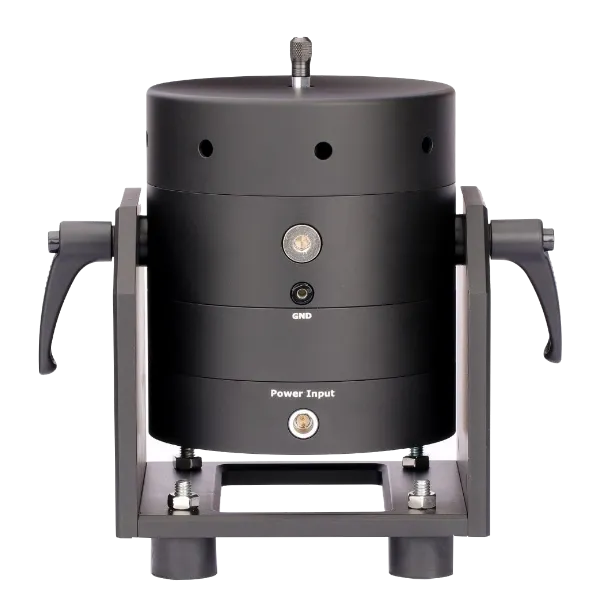

- Force options: 20, 100, 250, 440N

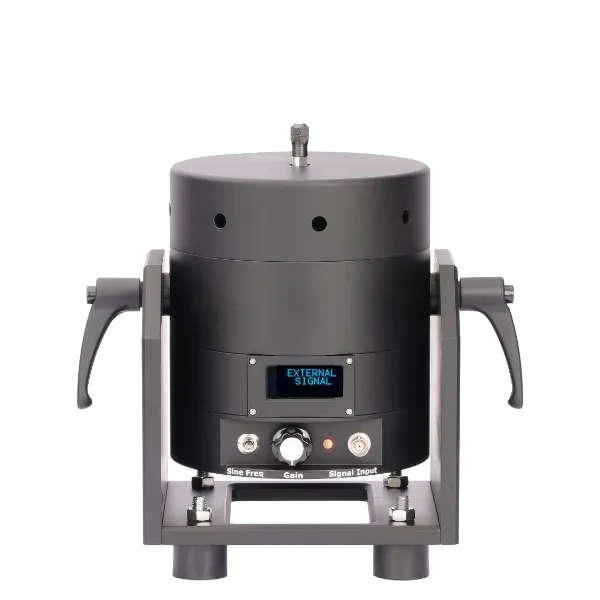

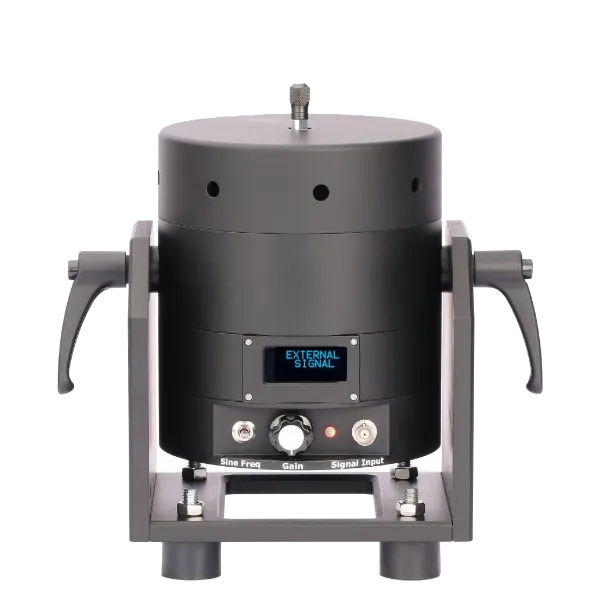

- Built-in amplifier & signal generator (models MS-20 and MS-100)
- Lightweight, durable, portable and easy to use
- Adjustable trunnion base provides high degree of flexibility
- Carbon fiber suspension
- 120VAC, 60Hz
- One (1) year warranty
best for
- Modal testing
- Satellite and spacecraft structural analysis
- Aircraft wing and fuselage testing
- Resonance testing of floors, beams, and towers
- Fatigue and resonance testing
- Mechanical frames, housings, and rotating equipment
- Verification of finite element models
- Experimental modal analysis training
Videos
MS Series Modal Shakers
Modal Shaker – What’s Included
Ready for a Demo?
Put our shakers and vibration controllers to the test
